Hanwha Vision launches next-generation QVGA AI thermal surveillance camera for smarter perimeter detection

Hanwha Vision, a leader in security and surveillance solutions, introduces its next-generation QVGA AI thermal surveillance camera range. Featuring AI object detection, advanced thermal imaging with noise equivalent temperature difference (NETD) of less than 20mK, long-range lens options up to 60mm, and eight or 30 frames per second (fps), these high-performance cameras transform perimeter and critical infrastructure monitoring.

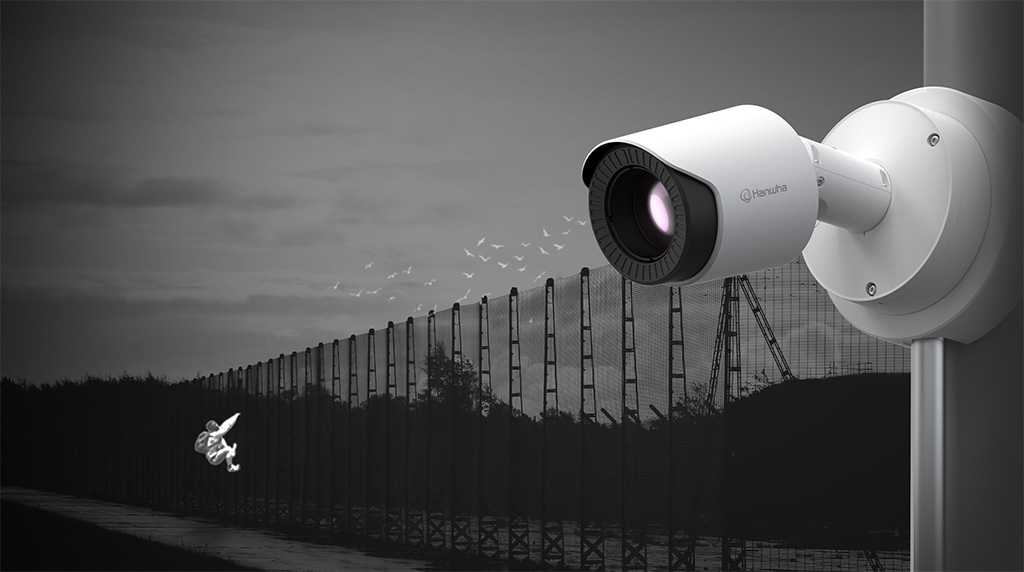

Whether securing data centres at close range, or tracking movement across long distances at borders and highways, or around large perimeters at airports and energy facilities, this QVGA AI thermal surveillance camera delivers dependable and accurate detection in complete darkness, as well as in rain, fog and smoke.

Accurate AI object detection provides real-time identification of people and vehicles, reducing false alarms caused by shadows, animals, or wind-blown objects. Event-triggering analytics such as virtual line-crossing and loitering detection ensure more proactive monitoring.

AI-based motion detection helps teams focus only on relevant movement and automates event alerts with high precision.

With NETD of less than 20mK, enabling detection differences of just 0.02 °C, these ultra-sensitive cameras provide outstanding thermal contrast. This allows operators to capture clearer, more detailed images in challenging low-contrast environments such as humid weather, fog, or at long distances where conventional thermal cameras may struggle. Additionally, the range can support temperature change detection in three areas of interest.

The QVGA AI surveillance thermal camera’s 13mm, 19mm, 35mm and 60mm focal length options, each available in 8fps or 30fps, provide flexible coverage for diverse surveillance needs. For closer-range monitoring, cameras equipped with the 13mm lens can distinguish a vehicle at 115 meters and a person at 87 meters. When long-range detection is required, the 60mm lens extends vehicle detection to 532 meters and person detection to 399 meters. With detection capabilities up to 5.4km (*based on Johnson Criteria), Hanwha Vision’s thermal lineup provides the flexibility and reach needed to protect expansive perimeters.

The 8fps cameras fall outside of the Wassenaar Arrangement, an export control regime that governs specific goods including thermal cameras with frame rates over 9fps. This makes exporting and importing them simpler, enabling a quicker delivery time.

The range is built for extreme environments. The camera features an IP67 weather rating, IK10 impact resistance, and a shielded RJ-45 connector for added surge protection. NEMA 4X, NEMA-TS 2, and MIL-STD-810H standards compliance ensure these cameras are significantly more rugged than a typical camera. Lightweight design and simplified mounting ensure fast, intuitive installation even in difficult, tight locations.

Cybersecurity is built into the camera’s foundation, with secure boot, firmware encryption, and a FIPS 140-3 Level 3 certified secure element, ensuring robust protection of sensitive video data and compliance with demanding industry regulations.

Key features of the QVGA AI thermal cameras:

• QVGA resolution with <20mK NETD for sharper thermal contrast and improved clarity in low-visibility environments.
• Built-in AI object detection (people, vehicles) at no extra cost for more efficient and accurate monitoring.
• AI-based analytics including virtual line crossing and loitering detection for event-triggered alerts.
• Lens options from 13mm to 60mm for flexible coverage from short-range to long-distance (*Johnson Criteria, up to 5.4km). 8fps options for fast delivery.
• Compact and lightweight housing for easier installation in constrained or elevated areas.
• IP67-rated weather protection and IK10 impact resistance, NEMA 4X, NEMA-TS 2, and MIL-STD-810H for harsh outdoor environments.
• Metal-shielded RJ-45 port for enhanced electrical surge protection.
• FIPS 140-3 Level 3 and CC EAL6+ certified for advanced cybersecurity and compliance.
• Seamless integration with major VMS platforms including Genetec, Milestone, and Wisenet WAVE.

Models with 8fps: TNO-C3042T / TNO-C3052T /TNO-C3062T / TNO-C3082T

Models with 30fps: TNO-C3040T / TNO-C3050T / TNO-C3060T / TNO-C3080T
